Lab Instrument Disintegration testing Tablet Disintegration tester BJ-2

FOB Reference Price:Get Latest Price
US $400-500 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
kingdak, KINGDAK
Model Number:
bj-2, BJ-2
Basket Assembly:
2
Nacelle back and forth frequency:
(30~32 ) /min
Nacelle back and forth range:
(55+/-1 )mm
Automatic time range:
( 5~120 )min
is_customized:
Yes
Supply Ability
Supply Ability:
100 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Veneer case packing
Port
SHANGHAI
Lead Time :
Within oneweek after payment

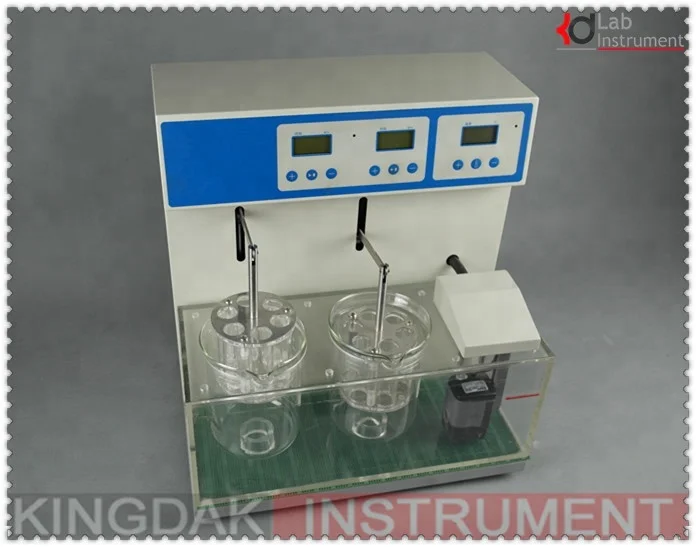

Lab Instrument Disintegration testing Tablet Disintegration tester BJ-2

Specifications:

BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.
Applicable standards :
National standard (Chinese codex) /2000/
Corporate standard (Disintegration tester ) Q/12XQ0188-2004

Features :
There are twelve tubes in two basket assembly .
Auto stop at timing point.
The bath liquid can achieve an even temperature .
A MPU is used to automatically control the temperature ,time and frequency of nacelle back and forth.
Timing at will ,The preset and real time data can be displayed alternately in time .
Automation : auto-test ,auto-diagnose ,auto-alarm .


Technical indexes:

Temperature prefabrication rangeroom temperature:~50, display resolution:0.1.

Temperature control accuracy±0.3

Timing prefabrication range1min~900min

Time control accuracy±0.5min

Work noise<60db

Number of lifting baskets2 sets

Lifting frequency of basket: (30~31times/min.

Lifting distance of basket: (55±1mm

Minimum spacing from screen to beaker bottom25mm±2mm

Mesh sizestandard configuration 2mm, (optional for 0.425mm and 1mm bore diameters)
Power supply:220V50Hz

Total power:600W

Overall dimensions:L*W*H  400mm*320mm*440mm
