Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: KINGDAK
  • Model Number: KBT100S-1 KZ25(Aluminium)
  • Theory: Electromagnetic Pump
  • Structure: Gear Pump
  • Usage: viscosity fluid
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: electricity
  • Pressure: Low Pressure
  • Application: pumping a variety of fluids
  • Flow range :: 1~1700ml/min
  • Speed range:: 0.1 ~ 150 rpm
  • Speed resolution:: 0.1 rpm, with accuracy 0.5%
  • Working Environment Temperature:: 0 ~ 40 °C
  • Relative humidity: <80%
  • Protection level:: IP31

Packaging & Delivery

Packaging Details Standard Exporting Packing Box
Delivery Time WITHIN ONEWEEK AFTER PAYMENT

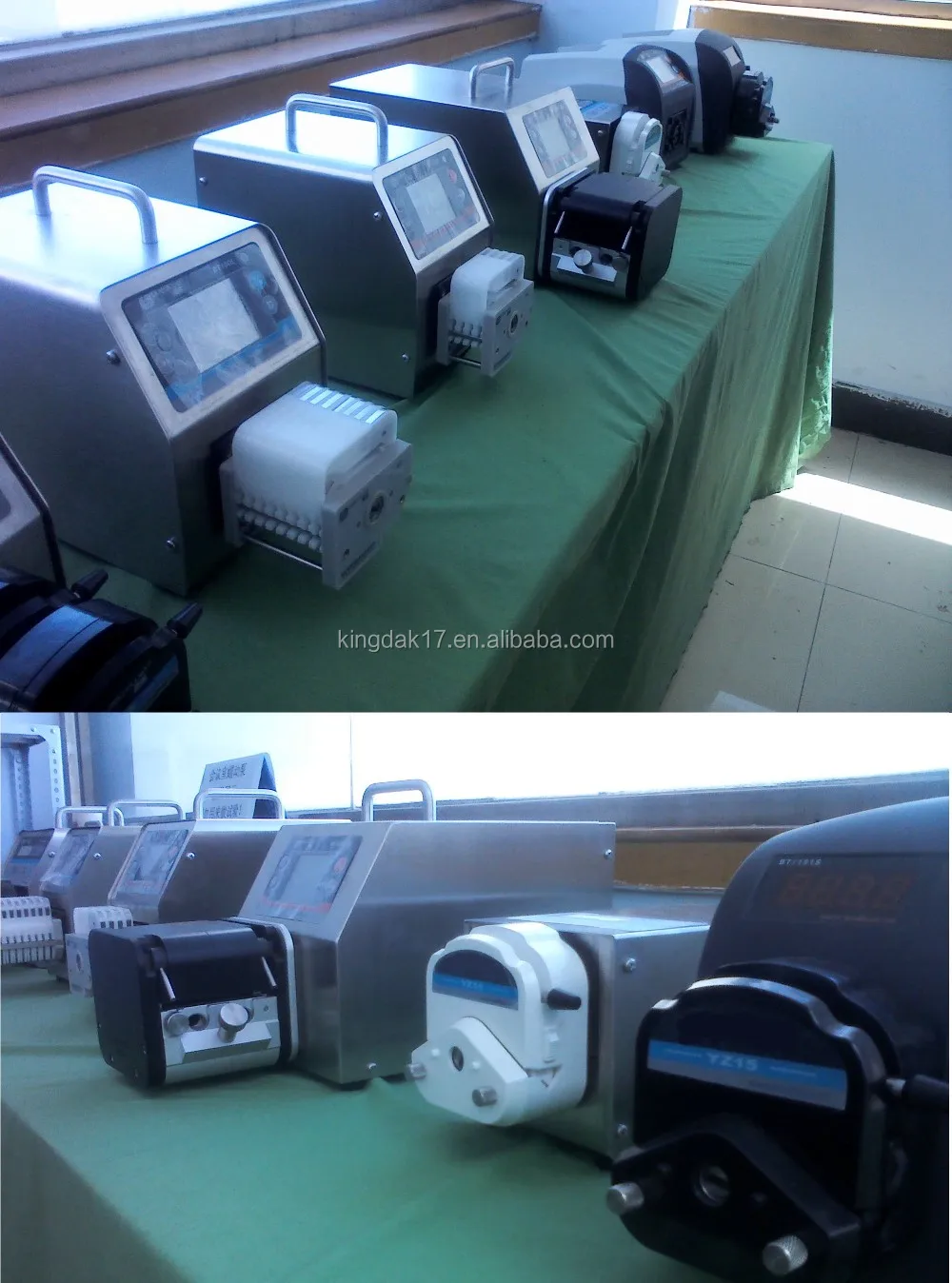

KBT100S-1 variable speed peristaltic pump

Peristaltic Pump/variable speed peristaltic pump/Simple Operation Peristaltic Pump



Product introduction
BT100S-1 Basic Speed –Variable Peristaltic Pump flow range is 0.00016-1200ml/min. Rotate speed is 0.1-150rpm.With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed .Dispensing function can realize the repeat timing quantitative dispensing liquid .RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC



Function and Feature
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-150 rpm, the speed resolution is 1 rpm.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the
  organic solvents.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function,
  optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available,



Technical parameters
• Flow range :0.00016-1200ml/min
• Flow accuracy:<0.5%
• Speed range:0.1-150rpm.
• Speed resolution: 0.1-100 rpm, the speed resolution is 0.1 rpm.
100-150 rpm, the speed resolution is 1 rpm
• Power supply :AC 220V±10%,50Hz/60Hz(standard),
AC 110V±10%,50Hz/60Hz(optional)
• Power consumption:• External control:Input electrical level 5V, 12V (standard),24V(optional).
External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface:RS485 communication interface,
support the MODBUS protocol.
• Ambient temperature:0 ~ 40°C
• Relative humidity:<80%
• IP grade:IP31
• Dimensions(LxWxH)285mmx150mmx195mm
• Weight:6.5KG



Applicable pump head and tubing, flow parameters

Drive typePump headchannelTube size(mm)Flow rate
(ml/min)
one channel
KBT100S-1DG6-8(6rollers)8Wall:0.8~1,ID:≤2.40.00016~26
DG10-8(10rollers)8Wall:0.8~1,ID:≤2.40.00011~20
DG6-12(6 rollers)12Wall 0.8~1,ID ≤3.170.00016~49
DG10-12(10 rollers)12Wall 0.8~1,ID ≤3.170.00011~41
DG6-16(6 rollers)16Wall 0.8~1,ID ≤3.170.00016~49
DG10-16(10 rollers)16Wall 0.8~1,ID ≤3.170.00011~41
DG6-24(6 rollers)24Wall 0.8~1,ID ≤3.170.00016~49
DG10-24(10 rollers)24Wall 0.8~1,ID ≤3.170.00011~41
DT10-88813#14#,
Wall:0.8~1,ID:≤3.17
0.0002~82
YZ15113#14#16#19#25#17#18#0.006~575
YZ25115#24#0.1667~425
2×YZ15213#14#16#19#25#17#18#0.006~575
2×YZ25215#24#0.1667~425
4×YZ15413#14#16#19#25#17#18#0.006~575
4×YZ25415#24#0.1667~425
KZ25-  Aluminium 115#24#35#36#1~1700
2×KZ25215#24#35#36#1~1700
DT15-46419#16#25#17#0.05~400
YT15113#14#16#19#25#17#18#0.006~570
YT25115#24#35#36#0.006~720
2×YT15213#14#16#19#25#17#18#0.006~570
2×YT25215#24#35#36#0.006~720
4×YT15413#14#16#19#25#17#18#0.006~570
4×YT25415#24#35#36#0.006~720

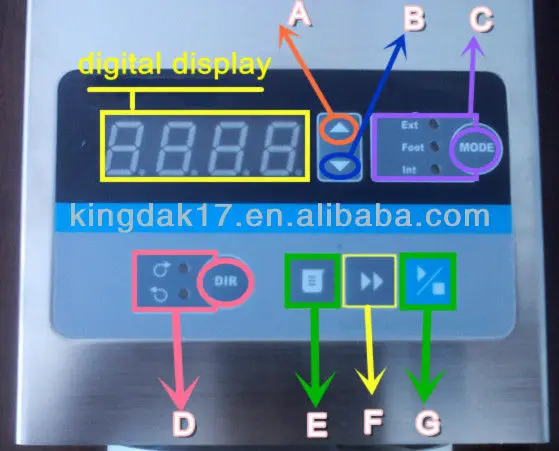

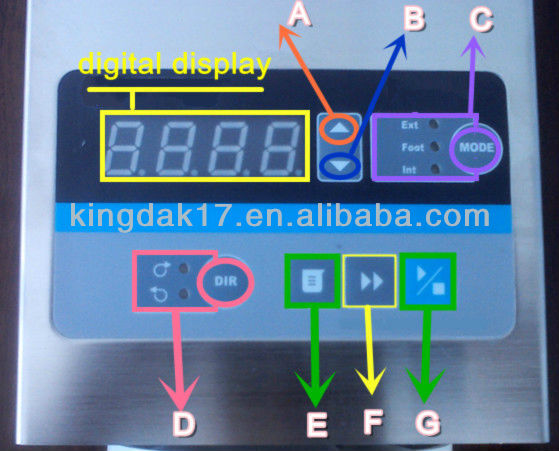

The control panel of the peristaltic pump:

A:speed-down keypad.

B:speed-up keypad.

C:mode conversion keypad. The mode could be changed from external control,food control to internal control.

D:Direction keypad.You could choose the positive rotation or the negative rotation.

E:Easy dispensing keypad.You could press this keypad to achieve easy dispensing when the pump is stopped.

F:Full speed keypad.This keypad could be used to change speed between max. and original condition.

G:Start/stop keypad.

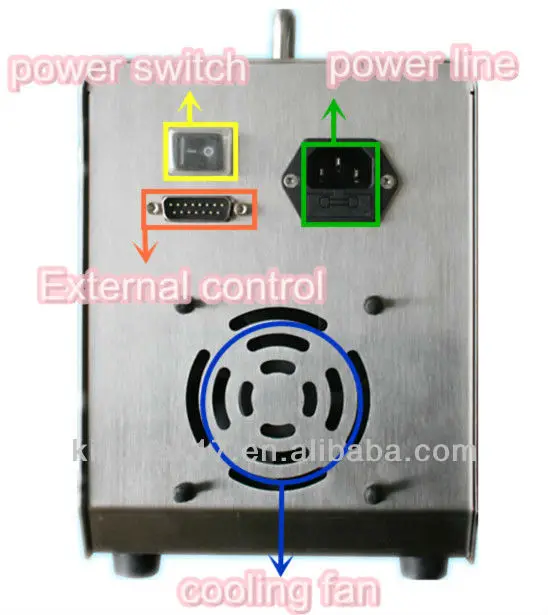

The structure of the back view:

Features:

1 The LED indicator displays the working mode .

Mask keypad operation

Reversible  direction,start/stop,adjust  speed  and  full  speed,state  memory(power–down memory).

Easy dispensing functions, it realizes the repeat timing quantitative dispensing.

Stainless  steel  housing,  easy  to  clean,  excellent  resistance  to  the  corrosion  of  the acid ,alkali ,sodium and the organic solvents.

6 The circuit board with conformal coating makes it dust-proof and moisture-proof

External high –low electrical level controls  the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed .

RS485  interface,MODBUS  protocol  is  available,easy  to  connect  with  other equipments.
