Manifolds Vacuum Filtration with gauge/Manifolds Vacuum Filtration All SS316

FOB Reference Price:Get Latest Price
US $900-1,400 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Other
Brand Name:
KINGDAK
Model Number:
Manifolds with gauge
Place of Origin:
Shanghai, China (Mainland)
SupplyAbility
SupplyAbility:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
carton
Port
SHANGHAI
Lead Time :
within 7 days after receiving the payment

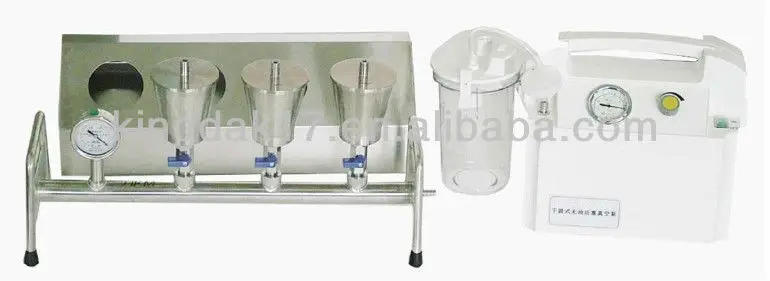

Manifolds Vacuum Filtration with gauge

Manifolds Filtration Apparatus/Vacuum filtration apparatus/Manifolds Vacuum Filtration---All SS316



Brief Introduction

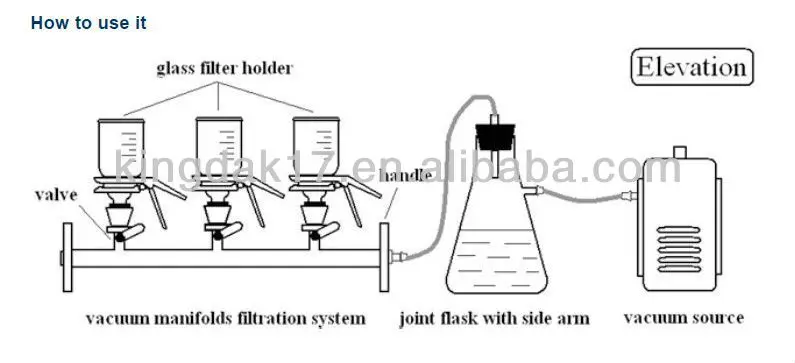

        Manifolds Vacuum Filtration is used primarily in microbiological and analytical procedures that involve collecting a particulate (bacteria, precipitate, etc.) from a liquid suspension. Liquid poured into a funnel passed through a filter, which retains the particulate, and filtrate can be collected into a filter flask, directly or via a vacuum manifold. Applying vacuum reduces process time compared to gravity flow. Vacuum Filtration Holders and Manifolds are particular designed and produced for several samples filtrate at the same time. Because each filter holder have individual control valve, only one set vacuum pump can sustain the single or Multi-branch manifold filter operate together.

Our advantage:

1)High quality material: Main part of this apparatus is made of stainless steel 316L which is strong, not easy to broke and long life. We are the first company using 316L fritted membrane support screen to make sure that membrane filter won't broke during the filtering procedure and the testing result is accurate, more important is it can make the Microbes distributed evenly on the surface on the membrane, so that the result can be observed easily. Various size of funnel is available, from 100ml to 500ml.

2)High testing efficiency: Each filter holder have individual control valve, only one set vacuum pump can sustain the single or Multi-branch manifolds operate together. When testing huge amount of samples, it can save lots of time. It is easy to clean, and easy to autocalve.

3)Patent Protected:Special design of the clamp make it convenient to operate and to pick up the membranes.

4)Efficient protection: Stainless steel cover with a hole which can connect to an air filter to avoid second contamination during the filtering. Scale inside of walls of funnel make it easy to refill the samples. The vacuum gauge connecting to the holder make it easy to control the pressure



 Technical Data

Branch

Two, Three,Six ,ten,more branch can be ordered

Suitable membrane

47mm 0.2um or 0.45 MCE 50pcs/box

Funnel size

47mm-250ml/500ml(500ml need custom-made)

35mm-500ml

Vacuum

200mbar

Receiving bottle

1L,2L,3L,4L Optional

pump

optional



   Ordering information

Catalogue Number

Specification

Funnel

Support Screen

Holder

KFA0221

3-branch

SS316L, 250ml /500ml

SS 316L Fritted

SS316L

KFA0222

6-branch

SS316L, 250ml/500ml

SS 316L Fritted

SS316L
