Laboratory Mixer Equipment (Lab High Speed Mixer)

FOB Reference Price:Get Latest Price
US $480 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Paddle
Application:
Liquid
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
KINGDAK
Model Number:
KM200S-P
Voltage:
AC 220 V 50HZ
Dimension(L*W*H):
215*310*720 mm
Warranty:
1 YEAR'S WARRANTY
Rated Power Supply:
AC 220 V 50 Hz
Rated Torque:
1.45Nm
Rating Speed Control:
Variable
Range of Speed:
100-1800 rpm
SupplyAbility
SupplyAbility:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
The goods pack in a Styrofoam and corrugated paper box to avoid damage in transit. External package : neutral carton. Or as clients requests
Port
SHANGHAI
Lead Time :
WITHIN 7 DAYS AFTER PAYMENT

 Laboratory Mixer Equipment / Lab Mixer





Introduction

  •  Laboratory Mixer  is  for mixing solid-liquid materials, liquid-liquid materials and it is suitable for kinds of other powder material.
  • Various agitators are designed for different processing capacity anddifferent  products.



Main Features

  • It is used for laboratory dispersing and mixing.
  • Can meet various requirements of lab dispersing and mixing. Easy  operate and easy clean  easy  maintainance .
  •  Variable Rating Speed Control provide with high effect.

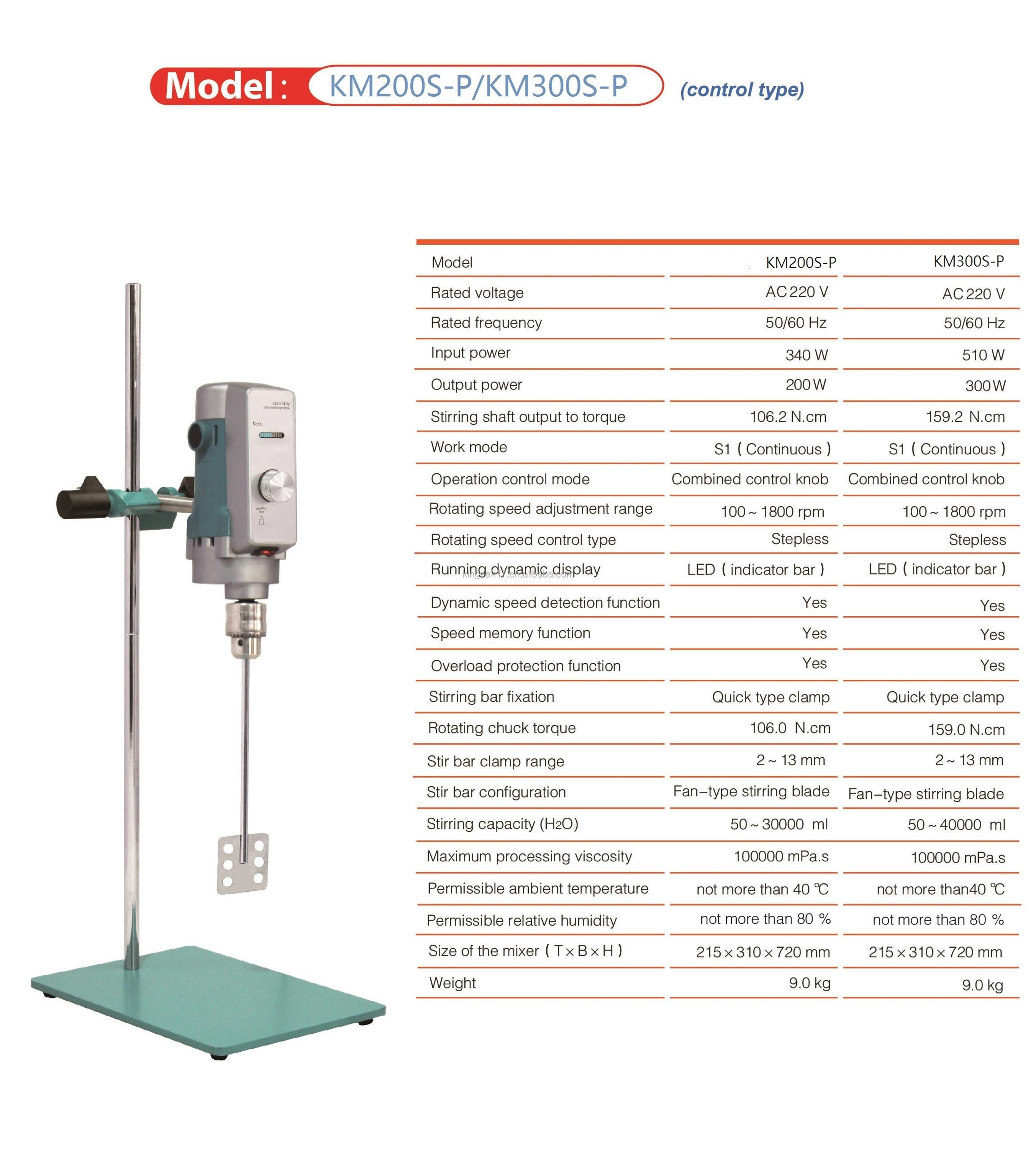

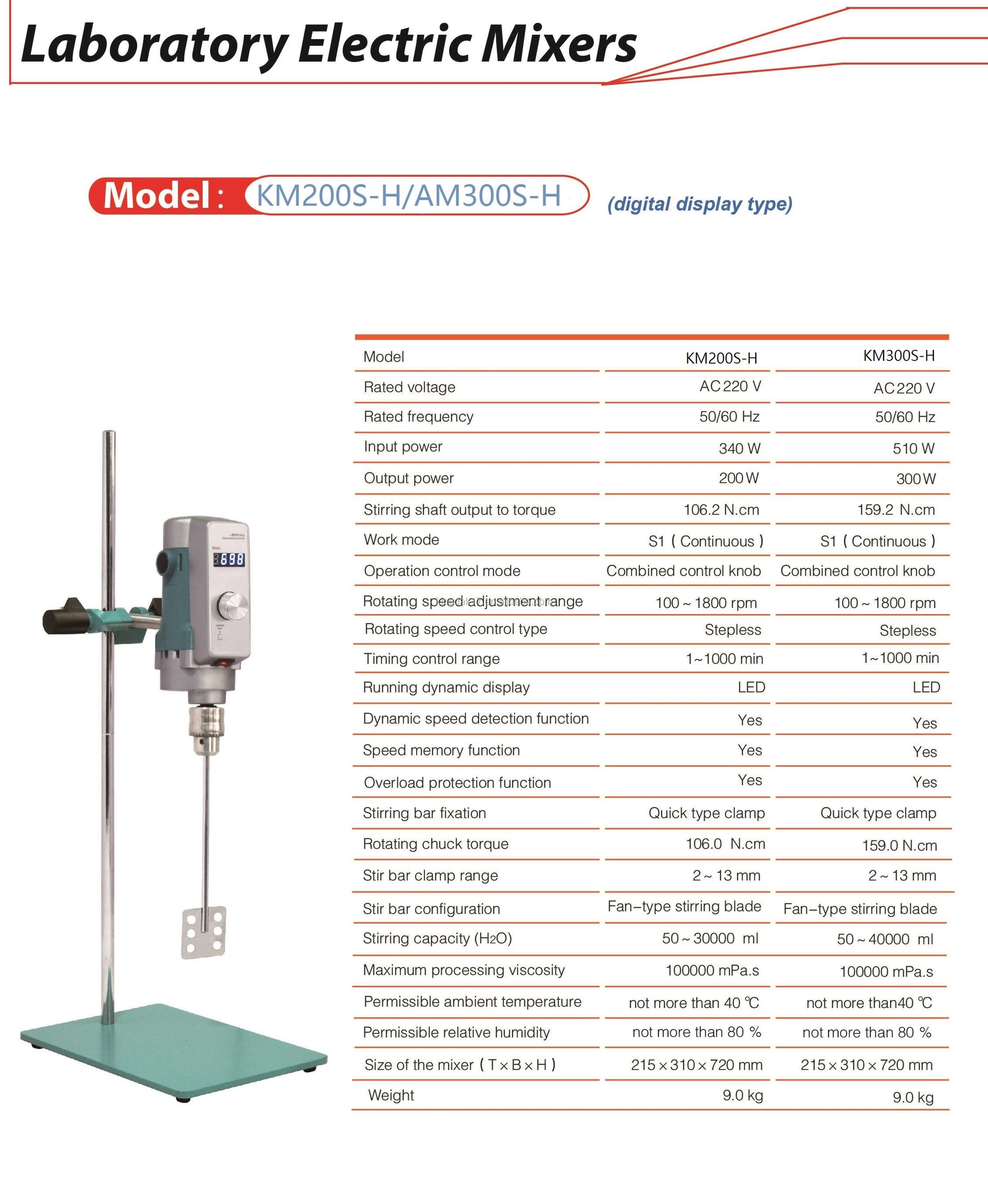

 Technical Parameter



Model:



KM200S-H / P

KM300S-H / P

Rated voltage:

ACV

220 ±10 %

Rated frequency:

Hz

50 / 60

Input power:

W

340

510

Output power:

W

200

300

Rated torque:

N·m

1.45

1.96

Work mode:

%

100

100

Speed control:

Level

Stepless

Speed range:

rpm

100~1800

Speed display:



Yes / No

Yes / No

Speed motion detection function:



Yes / No

Yes / No

Timer function:



Yes / No

Yes / No

Speed memory function:



Yes

Yes

Overload protection:



Yes / No

Yes / No

Chuck transfer torque:

N·cm

142

192

Stir bar clamp range:

mm

2~13

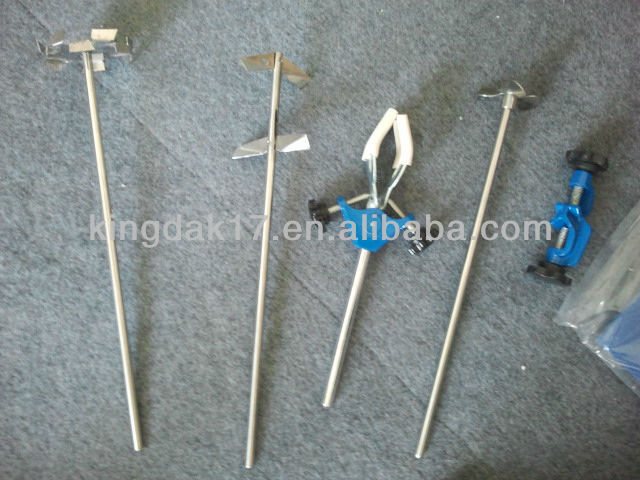

Stir bar standard configuration:

type

Blade-type impellers

Mixing capacity(H2O):

ml

50~40000

50~60000

Maximum processing viscosity:

cP

100000

100000

Permissible ambient temperature:

Lower than 40

Permissible relative humidity:

%

Less than  80

Size of the mixer(T×B×H):

mm

215×310×720

Weight:

kg

9















Payment Terms
1. All the payments required before



2.Time of delivery: within 7 days after receipt of payment
3.Term of payment: company account or west union



4.100% T/T Payment in advance
5.Validity: 30 working days
